Main Spindle Heads
QUICK INFO

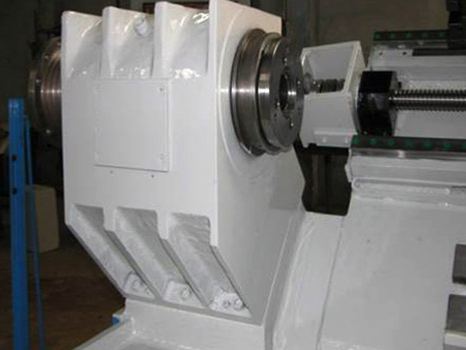

MACHT's Main Spindle Headstocks for CNC lathes, available from A2-3 to A2-8 Sizes, are designed keeping the Machine in Mind. The Hardened and Ground Spindle shaft is supported between High Precision Spindle Bearings in Front & Back. The Bearing Arrangements may vary as per requirements.
The Bearings selected allow higher cutting speeds and stiffness required for a Spindle for machines with higher chip producing capacity.
The Spindle Shafts are Balanced to ensure higher accuracies and tool life.
| MAIN SPINDLE HEADS: A2-5 SPINDLE | ||
| S.No. | Technical Data | Specification |
| 1. | Spindle Nose | A2-5 |
| 2. | Spindle RPM (Max) | 5000 |
| 3. | Front Bearing Dia | 90 mm |
| 4. | Back Bearing Diameter | 85 mm |
| 5. | Bar Work Diameter | 42 mm |
| 6. | Spindle Power | 12.5 KW |
| 7. | Spindle Runout | <0.005 mm |
